CIE-H14A / 4-Port Remote I/O Controller

Product Specification Videos Download Ordering Info
remote io modbus tcp device cie h14a

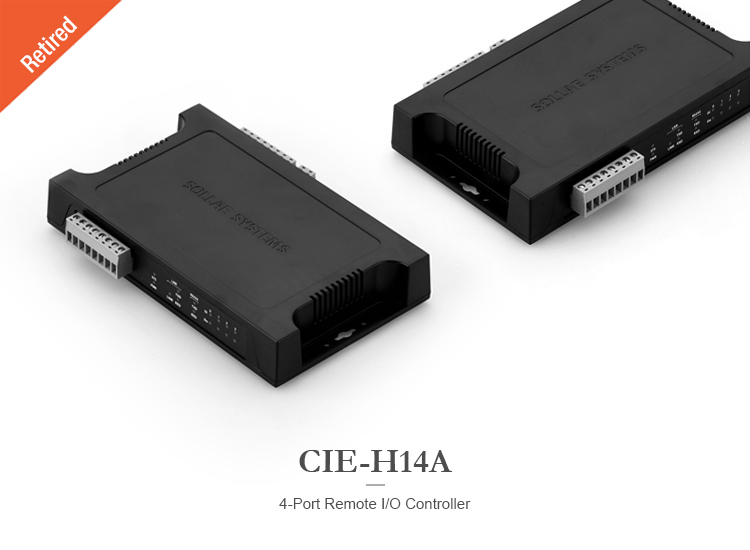

CIE-H14A is a remote I/O gateway equipped with 4 digital input ports, 4 digital output ports, an RS-232 and Ethernet interface. Each digital input port is linked to a photocoupler. The input port can monitor the ON/OFF state of equipment (maximum is 24VDC). Each digital output port is linked to a relay. Apart from ON/OFF control, the digital output port can also be controlled to generate a pulse.

CIE-H14A supports Modbus TCP protocol. You can control/monitor equipment/sensors located in remote places from a PC software, mobile app, HMI, or other Modbus TCP devices. You can use our free software/app called ModMap or any software/app that supports Modbus TCP. CIE-H14A is also equipped with an embedded web server with a preloaded web page, so you can use any web browser on a PC/smartphone to access the web page to control/monitor equipment/sensors. The web page is customizable so you can easily change the web UI if needed.

CIE-H14A allows each digital output port to be automatically controlled by a logic formula of digital input and output ports. Especially, CIE-H14A can connect directly to multiple CIE-H12A, CIE-H10A, and/or other CIE-H14A to form an I/O system called Internet Switch. The system allows the output port of a device to be controlled by input ports of other devices, and vice versa, via the Internet. CIE-H14A allows up to eight TCP connections simultaneously, enabling to monitor sensors from different HMI devices/software/apps at the same time. Besides, CIE-H14A can work simultaneously as an RS232 to Ethernet converter while serving I/O operations.

    Features
  • Wide range of power input (DC8.5V ~ 38V)
  • Power input interface (terminal block)
  • Dry contact adapter (optional)
  • Monitor & control via Modbus/TCP or Web
  • Controlled by simple logic formula operating autonomously
  • Web-based control over custom web page
  • Can be used as Internet switch
  • Free Modbus/TCP program (ModMap)
Learn more about remote digital I/O control solution  >

* The above information is subject to change and Sollae Systems is not responsible for any changes.
Digital Input Port
Number of Ports4
InterfaceIsolated by Photo-coupler
Electric ParameterMAX VIL=1.2V, MIN VIH=4.5V
Maximum Input VoltageDC 24V

Digital Output Port
Number of Ports4
InterfaceIsolated by Relay
Relay Capacity5A(DC28V)

Serial Physical Interface
Serial Interface1 x RS232 Port
RXD, TXD, RTS, CTS, DTR, DSR, GND
±15KV ESD Protection
ConnectorDB9M Connector

Serial Port Property
Data Rate300bps ~ 230,400 bps
Data Bits5, 6, 7, 8 bits
ParityNone, Even, Odd, Mark, Space
Stop Bit1, 1.5, 2

Network Physical Interface
Network Interface10Base-T/100Base-TX Ethernet(RJ45)
Ethernet Speed Auto Sense
1:1 or Cross-over Cable Auto Sense
1000 VAC Isolation

Software Functions
ProtocolsTCP, UDP, IP, ICMP, ARP, DHCP, PPPoE, TELNET
TFTP, DNS, DDNS, HTTP, Modbus/TCP, SMTP
SecurityIP & MAC filtering - Restrict host or network
Password for Configuring
Digital I/O Port
Communication Mode		Modbus/TCP, HTTP, Stand alone(by simple equation)
Communication ModeTCP Server(T2S)
TCP Client(COD)
TCP Server/Client with AT Command(ATC)
UDP Mode(U2S)
Additional FunctionsRemote Debug Function
TCP Server/Client Mode
Sending MAC address Option

Indicators(LEDs)
PowerRed
StatusGreen
Ethernet LinkGreen
Ethernet RXDGreen
Ethernet TXDGreen
Digital InputGreen x 4
Digital OutputGreen x 4

Management
ezManagerConfiguration and Monitoring Tool through Network and Serial
TelnetTelnet Login
AT CommandConfiguring in ATC Mode

Supplementary Software
ezManagerConfiguration Tool for Windows
ezVSPSerial to Network Virtual Driver for Windows
ModMapManagement Tool of I/O controllers for Windows

Dimension
Size174mm x 123mm x 28mm

Operating Environment
Input VoltageDC 8.5V ~ 38V
Power Consumption3W typical
Operating Temperature-40℃ ~ +70℃
Storage Temperature-40℃ ~ +85℃

Certificate
KCRegistration(KN 32, KN 35)
CEEMC 2014/30/EU, RoHS 2011/65/EU






Technical Documents
BASIC
1CIE-H14A DataSheet
2CIE-H14A User Manual
3CE Certificate
4CIE-H14A Declaration of RoHS Compliance
I/O
1Dry Contact Adapter(DCA)
2Dry Contact Interface
TCP
1Sending MAC Address function
2TCP Server/Client mode
3IP Change Notification(DDNS)
4Separator function
SERIAL
1Telnet COM Port Control Option
2Serial cable datasheet
MODBUS/TCP
1Modbus/TCP Protocol
2Internet switch
3Combinations of I/O controllers
4Digital Pulse Ouput
HTML
1How to use a user's homepage
2 Examples of User's HTML files
SOFTWARE
1ModMap Users' manual
FAQ
1CIE-H14A Frequently Asked Questions faq icon

Utilities
Part Number Description Note
CIE-H14A-BO cie h14a line
CIE-H14A
Optional Accessories Description Note
DCA-H14 dry contact adapter
Dry Contact Adapter (DCA)
SC 1 5serial cable
Serial cable datasheet
MOUNTER mounter
Datasheet
DVD dvd
DVD with configuration tools and documentation
