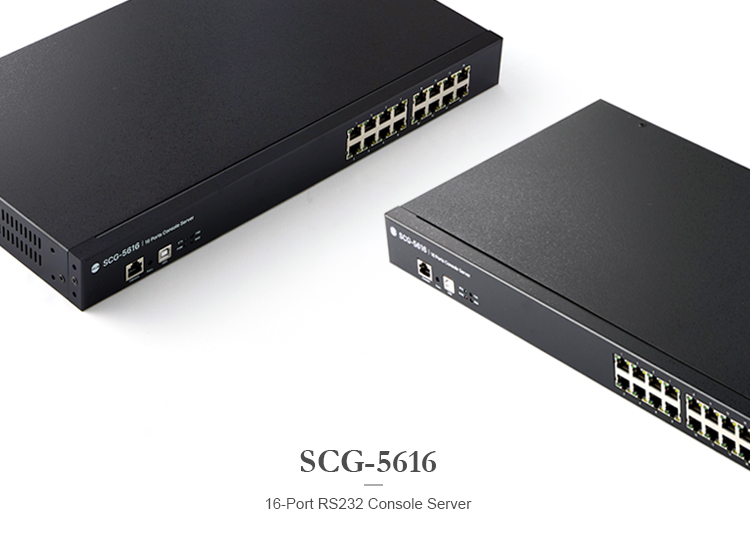

The SCG-5616 Console Server is equipped with 16 RS232 ports (RJ45) and an Ethernet port (RJ45) for seamless network management. Ideal for data centers and remote offices, it offers secure, remote access with encryption and user authentication. Simplify configuration and troubleshooting with a user-friendly interface and robust performance. Enhance network resilience with environmental monitoring and power management. Upgrade your network management with SCG-5616, the 16-port Console Server.
SCG-5616 can be applied in communication environments such as Remote Console Monitoring, etc.
| Serial Physical Interface | |
| Serial Interface | 16 x RS232 ports |
|---|---|
| RXD, TXD, RTS, CTS, DTR, DSR, GND | |
| Connector | 16 x 8-pin RJ45 Connectors |
| Serial Port Properties | |
| Baudrate | 2,400 ~ 115,200 bps |
| Data Bits | 8 bits, 7 bits with parity |
| Parity | None, Even, Odd, Mark, Space |
| Stop Bit | 1, 2 |
| Flow Control | None, RTS/CTS |
| Network Physical Interface | |
| Ethernet | 10Base-T/100Base-TX Ethernet (RJ45) |
| Ethernet Speed Auto Sense | |
| 1:1 or Cross-over Cable Auto Sense | |
| Software Function | |
| Protocols | TCP, IP, TLS, SSH, ICMP, ARP, TELNET, DHCP, mDNS |
| Security | Password for Configuration |
| Communication Mode | TCP Server |
| Indicators | |
| LED | PWR, STS, TXD, RXD |
| Management | |
| spFinder | Configuration Tool for Windows |
| Dimension | |
| Size | 43.7cm x 4.4cm x 22.8cm |
| Weight | About 2.5Kg |
| Operating Environment | |
| Input Voltage | AC 90V ~ 264V |
| Power Consumption | Typically, 22W |
| Operating Temperature | -20℃ ~ +60℃ |
| Storage Temperature | -20℃ ~ +60℃ |
| Certificate | |
| KC | Registration (KS C 9832, KS C 9835) |
